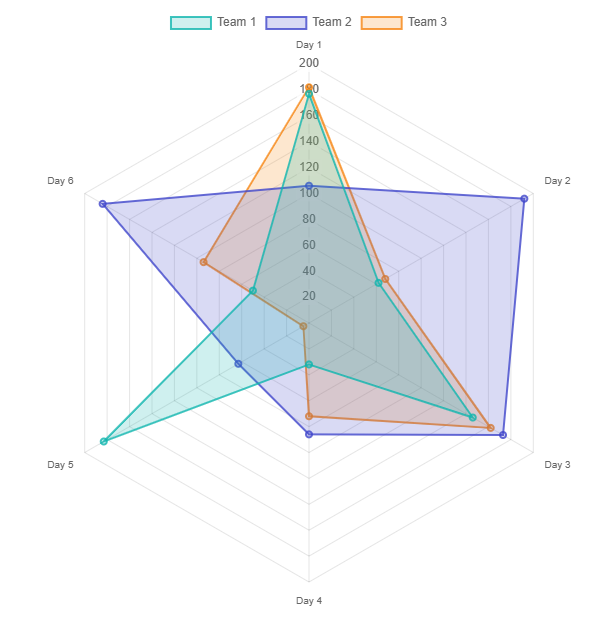

Blazor RadarChart component
Comprehensive API documentation for the Blazor RadarChart component, including configuration options, parameters, methods, events, child component parameters, and model properties.
Parameters #
| Name | Type | Default | Required | Description | Added Version |
|---|---|---|---|---|---|
| AdditionalAttributes | Dictionary<string, object> | null | Gets or sets additional attributes that will be applied to the component. | 1.0.0 | |
| Class | string? | null | Gets or sets the CSS class name(s) to apply to the component. | 1.0.0 | |
| ContainerClass | string | null | Gets or sets the CSS class name for the container element. | 1.0.0 | |
| ContainerStyle | string | null | Gets or sets the CSS style string applied to the container element. | 1.0.0 | |
| Height | int? | null | Gets or sets chart container height. | 1.0.0 | |
| HeightUnit | Unit | Px | Gets or sets chart container height unit of measure. | 1.0.0 | |
| Id | string? | null | Gets or sets the ID. If not set, a unique ID will be generated. | 1.0.0 | |
| IsContainerFluid | bool | False | Gets or sets a value indicating whether the container is fluid. | 1.0.0 | |
| Style | string? | null | Gets or sets the CSS style string that defines the inline styles for the component. | 1.0.0 | |
| Width | int? | null | Gets or sets chart container width. | 1.0.0 | |
| WidthUnit | Unit | Px | Gets or sets chart container width unit of measure. | 1.0.0 |
Methods #
| Name | Return type | Description | Added Version |
|---|---|---|---|
| AddDataAsync(char chartData,string dataLabel,char data) | Task<ChartData> | Asynchronously adds a new data entry to the specified chart data. | 1.0.0 |
| AddDataAsync(char chartData,string dataLabel,IReadOnlyCollection`1 data) | Task<ChartData> | Asynchronously adds a new dataset to the specified chart data. | 1.0.0 |
| AddDatasetAsync(char chartData,char chartDataset,char chartOptions) | Task<ChartData> | Asynchronously adds a dataset to the specified chart data. | 1.0.0 |
| InitializeAsync(char chartData,char chartOptions,string plugins) | Task | Asynchronously initializes the chart with the specified data and options. | 1.0.0 |
| UpdateAsync(char chartData,char chartOptions) | Task | Asynchronously updates the chart with the specified data and options. | 1.0.0 |
ChartData Properties #
| Name | Type | Default | Required | Description | Added Version |
|---|---|---|---|---|---|
| Datasets | List<IChartDataset>? | null | Gets or sets the collection of datasets to be displayed in the chart. | 1.0.0 | |
| Labels | List<string>? | null | Gets or sets the labels for the chart, typically used for the x-axis or categories. | 1.0.0 |
RadarChartDataset Properties #
| Name | Type | Default | Required | Description | Added Version |
|---|---|---|---|---|---|
| Animation | char | null | Chart.js animates charts out of the box. A number of options are provided to configure how the animation looks and how long it takes. | 1.2.0 | |
| BackgroundColor | string | rgba(0, 0, 0, 0.1) | Get or sets the line fill color. | 1.0.0 | |
| BorderCapStyle | string | butt | Cap style of the line. Supported values are butt, round, and square. | 1.0.0 | |
| BorderColor | string | rgba(0, 0, 0, 0.1) | Get or sets the line color. | 1.0.0 | |
| BorderDash | List<double>? | null | Gets or sets the length and spacing of dashes. | 1.0.0 | |
| BorderDashOffset | double | 0 | Offset for line dashes. | 1.0.0 | |
| BorderJoinStyle | string | miter | Line joint style. There are three possible values for this property: round, bevel, and miter. | 1.0.0 | |
| BorderWidth | double | 3 | Gets or sets the line width (in pixels). | 1.0.0 | |
| Clip | string | null | How to clip relative to chartArea. Positive value allows overflow, negative value clips that many pixels inside chartArea. 0 = clip at chartArea. Clipping can also be configured per side: clip: {left: 5, top: false, right: -2, bottom: 0} | 1.0.0 | |
| Data | List<TData>? | null | Get or sets the Data. | 1.0.0 | |
| Datalabels | RadarChartDatasetDataLabels | new() | Gets or sets the data labels configuration for the radar chart dataset. Use this property to customize the display of data labels, such as their position, format, or visibility, in the radar chart dataset. If not set, a default configuration is applied. | 1.0.0 | |
| Fill | Object | False | How to fill the area under the line. | 1.0.0 | |
| Hidden | bool | False | Configure the visibility of the dataset. Setting Hidden to true will prevent the dataset from being rendered in the Chart. |
1.0.0 | |
| HoverBackgroundColor | string? | null | The line fill color when hovered. | 1.0.0 | |
| HoverBorderCapStyle | string? | null | Cap style of the line when hovered. | 1.0.0 | |
| HoverBorderColor | string? | null | The line color when hovered. | 1.0.0 | |
| HoverBorderDash | List<double>? | null | Gets or sets the length and spacing of dashes when hovered. | 1.0.0 | |
| HoverBorderDashOffset | double? | null | Offset for line dashes when hovered. | 1.0.0 | |
| HoverBorderJoinStyle | string | null | Line joint style. There are three possible values for this property: 'round', 'bevel', and 'miter'. | 1.0.0 | |
| HoverBorderWidth | double? | null | The bar border width when hovered (in pixels) when hovered. | 1.0.0 | |
| Label | string | null | The label for the dataset which appears in the legend and tooltips. | 1.0.0 | |
| Oid | Guid | Guid.NewGuid() | Gets the unique object identifier for this dataset instance. This value is auto-generated when the dataset is created. | 1.0.0 | |
| Order | int | 0 | The drawing order of dataset. Also affects order for stacking, tooltip and legend. | 1.0.0 | |
| PointBackgroundColor | List<string>? | rgba(0, 0, 0, 0.1) | The fill color for points. | 1.0.0 | |
| PointBorderColor | List<string>? | rgba(0, 0, 0, 0.1) | The border color for points. | 1.0.0 | |
| PointBorderWidth | List<double>? | 1 | The width of the point border in pixels. | 1.0.0 | |
| PointHitRadius | List<double>? | 1 | The pixel size of the non-displayed point that reacts to mouse events. | 1.0.0 | |
| PointHoverBackgroundColor | List<string>? | null | Point background color when hovered. | 1.0.0 | |
| PointHoverBorderColor | List<string>? | null | Point border color when hovered. | 1.0.0 | |
| PointHoverBorderWidth | List<double>? | 1 | Border width of point when hovered. | 1.0.0 | |
| PointHoverRadius | List<double>? | 4 | The radius of the point when hovered. | 1.0.0 | |
| PointRadius | List<double>? | 3 | The radius of the point shape. If set to 0, the point is not rendered. | 1.0.0 | |
| PointRotation | List<double>? | 0 | The rotation of the point in degrees. | 1.0.0 | |
| PointStyle | List<string>? | circle | Style of the point. Supported values are 'circle', 'cross', 'crossRot', 'dash', 'line', 'rect', 'rectRounded', 'rectRot', 'star', 'triangle' and false. | 1.0.0 | |
| SpanGaps | bool? | null | If true, lines will be drawn between points with no or null data. If false, points with null data will create a break in the line. | 1.0.0 | |
| Tension | double | 0 | Bezier curve tension of the line. Set to 0 to draw straight lines. This option is ignored if monotone cubic interpolation is used. | 1.0.0 | |
| Type | string | null | Gets or sets the chart type. This value is auto-set based on the chart type. | 1.0.0 |
RadarChartDatasetData Properties #
| Name | Type | Default | Required | Description | Added Version |
|---|---|---|---|---|---|
| BackgroundColor | string | null | |||
| BorderColor | string | null | |||
| Data | object? | null | Gets the data value or values for the dataset. | 1.0.0 | |
| DatasetLabel | string? | null | Gets the label for the dataset this data belongs to. | 1.0.0 |
RadarChartDatasetDataLabels Properties #
| Name | Type | Default | Required | Description | Added Version |
|---|---|---|---|---|---|
| Alignment | DataLabelAlignment | Center | Gets or sets the data labels alignment. | 1.0.0 | |
| Anchor | DataLabelAnchor | Center | Gets or sets the data labels anchor. | 1.0.0 | |
| BackgroundColor | string | null | Gets or sets the data label background color. | 1.0.0 | |
| BorderColor | string | null | Gets or sets the data label border color. | 1.0.0 | |
| BorderWidth | double | 2 | Gets or sets the width of the border. | 1.0.0 | |
| DataLabelsAlignmentAsString | string? | null | Gets the data labels alignment as a string. | 1.0.0 | |
| DataLabelsAnchorAsString | string? | null | Gets the data labels anchor as a string. | 1.0.0 |
RadarChartOptions Properties #
| Name | Type | Default | Required | Description | Added Version |
|---|---|---|---|---|---|
| Animation | char | null | Chart.js animates charts out of the box. A number of options are provided to configure how the animation looks and how long it takes. | 1.2.0 | |
| Locale | string? | By default, the chart is using the default locale of the platform which is running on. | Gets or sets the locale for the chart. | 1.0.0 | |
| MaintainAspectRatio | bool | True | Gets or sets a value indicating whether to maintain the original canvas aspect ratio (width / height) when resizing. | 1.0.0 | |
| Responsive | bool | True | Gets or sets a value indicating whether the chart canvas should resize when its container does. | 1.0.0 |
